4-6. HACCP-Compliant Logistics Facilities

1. The HACCP Law and Basic Requirements for Building Facilities

Hygiene management based on HACCP (Hazard Analysis and Critical Control Point) and the building facilities and equipment in logistics facilities and factories are closely related. While HACCP is originally a "process management method," a building structure and equipment environment that meets the "Prerequisite Programs (PRP)" is indispensable as a precondition for it to function correctly.

1.1 Zoning (Clear Separation of Work Areas)

To prevent the spread of contamination (secondary contamination / cross-contamination), a structure that physically partitions areas within the building according to hygiene levels is required.

• Area division by cleanliness level:
  • Contaminated Work Area: Truck berths, outer box unpacking areas, waste storage areas
  • Semi-clean Work Area: Primary storage areas, sorting/inspection areas
  • Clean Work Area: Processing/packing areas where food is exposed, repacking areas
• Facility countermeasures: Physical blocking via walls or partition panels, installation of air curtains or double doors between each area.

1.2 Separation of People and Cargo Traffic Lines (Cross Prevention)

A traffic line plan is necessary to ensure that contaminants are not brought into clean areas through carry-in routes or the movement of workers.

• One-way traffic line: A building layout where cargo does not flow backwards from the arrival of raw materials to the shipment of products.
• Separation of people and cargo traffic lines: Completely separating the worker entry route from the cargo carry-in route.
• Dedicated antechamber and hygiene handwashing equipment: Placing shoe sole washers, air showers, and sensor-type automatic handwashing equipment / hand sanitizers just before entering a clean area.

1.3 Overview of Structural Requirements for Floors, Walls, and Ceilings

Part	Facility/Specification Requirements for HACCP Compliance
Floor	・Coated floors (water-based polyurethane, etc.) equipped with chemical resistance, heat resistance, and dust proofing. ・An appropriate drainage gradient (approx. 1/50 to 1/100) in preparation for washing with water. ・"R construction (baseboard)" that rounds the joints between walls and floors (prevents accumulation of dirt).
Drainage Ditch (Dry/Wet)	・Stainless steel drainage ditches (U-shaped ditches) to prevent water puddles. ・Installation of traps and insect screens to prevent the backflow of pests and bad odors.
Walls / Ceilings	・Smooth, anti-mold, and antibacterial panels that do not accumulate dust. ・Insulation structure to prevent condensation (condensation is a cause of mold).

2. Positive Pressure Air Conditioning Systems and Insect/Dust-proofing Equipment

In HACCP-compliant facilities, to shut out the intrusion of biological and physical hazards (pests, dust, airborne bacteria, etc.), an equipment system that controls air flow and the protection of openings throughout the entire building is introduced.

2.1 Mechanism of Positive Pressure Air Conditioning Systems

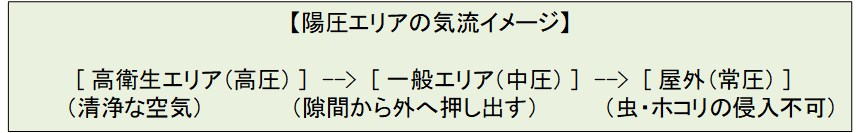

Creating positive pressure is a system that "keeps the air pressure inside the room higher than adjacent areas or the outdoors."

• Principle and Air Flow: By controlling the air supply volume (amount of air taken in from outside) to be greater than the exhaust volume, a high atmospheric pressure state is created inside the warehouse. Consequently, the moment a door or shutter is opened, a flow of "wind blowing out from inside the warehouse to the outdoors" occurs, physically pushing back the intrusion of insects and dust contained in the outside air.

• Important equipment configuring the system:
  • Outside air processing air conditioner (OA fan) + HEPA/Medium performance filter: Catches and filters fine particles and insects from the intake outside air in advance, and blows it into the warehouse.
  • Differential pressure control damper: Automatically adjusts and maintains a constant air pressure difference between each room (e.g., about 10-15Pa between clean and contaminated areas).

2.2 Insect and Dust Proofing Equipment at Openings

For "openings" that inevitably come into contact with outside air, such as when bringing cargo in and out, multi-layered protective measures are taken in combination with positive pressure.

Equipment Name	Mechanism and Role
Dock Shelter / Dock Seal	When a truck docks, the gap between the vehicle body and the building opening is tightly covered with cushions or sheets, blocking the direct intrusion of outside air.
Interlocking Double Shutter	Two shutters are installed, and controlled so that "when A is open, B will not open." This reduces the moment when outside air and the warehouse interior ventilate directly to zero.
High-speed Sheet Shutter	Opens and closes automatically at a high speed of around 2m per second upon sensor detection. Minimizes opening time to the utmost limit.
Air Curtain Push-Pull System	When the shutter opens, a strong wall of wind (air curtain) blows from the top to the bottom, blocking flying insects and the entry of dust.

2.3 Monitoring and Insect Catching Equipment (Secondary Defense Measures)

• Insect catchers for monitoring (Insect catching lights): Adhesive sheet-type UV light insect catchers are placed near entrances and on main traffic lines. The number and type of captured insects are regularly analyzed and utilized to cut off sources of outbreaks.
• Insect repellent lamps (Yellow-green LED / Yellow transmission film): Dedicated lighting that cuts off the ultraviolet wavelengths that easily attract insects is adopted around outdoor berths and entrances.

2.4 Construction and Design Precautions When Introducing Equipment

• Securing the airtightness of the building: If airtightness is low, air will escape through gaps even with positive pressure, and differential pressure cannot be maintained. Highly airtight design is a prerequisite.
• Regular maintenance of air supply filters: Because filter clogging leads to a drop in air supply volume and negative pressure, monitoring with differential pressure gauges and regular cleaning/replacement are mandatory.

3. Selection and Role of Dock Shelters

In food logistics and cold chain-compliant logistics facilities, legal compliance with HACCP and the introduction of dock shelters are an indispensable combination to guarantee the quality and hygiene management of cargo. (Since June 2021, hygiene management in accordance with HACCP has become completely mandatory for all food-related businesses in Japan as well).

3.1 Main Structural Types of Dock Shelters

These are air shield equipment that seal and shield the gap between the building opening and the truck bed.

1. Air Shelter (Inflatable Type): A type where pads are inflated with a blower to tightly adhere to the outer circumference of the truck without any gaps (mainstream in advanced low-temperature management and HACCP-compliant warehouses).
2. Cushion Shelter (Pad Type): A type that seals by pressing the rear end of the truck against urethane sponge cushions.
3. Weight Shelter (Sheet Type): A type that covers the top and sides of the truck with flexible rubber sheets.

3.2 Functions of Dock Shelters against HACCP Requirements

Management Requirements under HACCP	Role Played by the Dock Shelter
Prevention of Temperature Deviation (CCP Management)	Blocks the inflow of outside air (hot air) when the rear door of the truck is opened. Prevents temperature rise in the low-temperature antechamber (+5℃ to +10℃) and maintains the cold chain.
Insect and Dust Proofing Measures	Physically blocks close to 100% of flying insects such as flies and mosquitoes lurking in outside air, as well as dust and exhaust gas, from intruding into the warehouse.
Suppression of Condensation and Mold	Prevents "condensation on floors and ceilings" caused by outside moisture flowing into low-temperature warehouses (preventing mold outbreaks and slipping accidents).

*In modern food and low-temperature warehouses, the standard design is to install and use them as a set with "dock levelers" that adjust the floor height difference with the truck, and "high-speed sheet shutters with dock seals."

4. Continuous Temperature Monitoring Systems in Cold Storage and Food Warehouses

In frozen and refrigerated logistics warehouses that meet HACCP standards, the introduction of continuous temperature monitoring (data logging) and real-time anomaly detection systems is essential as a "Critical Control Point for temperature management (CCP / General PRP)" to prevent food quality deterioration and bacterial propagation.

4.1 Basic Structure of Continuous Temperature Monitoring Systems

• Placement of temperature sensors (data loggers): High-density placement at points prone to temperature changes, such as near high ceilings, near entrances/exits, and directly under cold air outlets. Utilizing wireless communication like Bluetooth, Zigbee, LoRaWAN, etc.
• Data collection gateway (master unit) and cloud accumulation: Automatically transmits data at 1- to 5-minute intervals and saves it in the cloud, etc., in an unalterable format. Enables immediate output of graph reports for auditing.

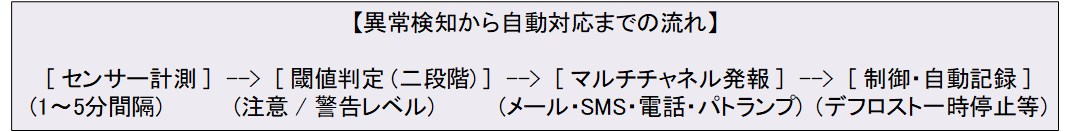

4.2 Real-time Anomaly Detection and Alert Issuance

• Two-stage threshold setting:
  • Caution Alert (Warning): Issued when the management target value is exceeded (e.g., rising to -18℃ against a -20℃ setting). Prompts on-site confirmation and preparation for cargo evacuation.
  • Limit Value Alert (Emergency): Issued when the limit tolerance value under HACCP standards is exceeded (e.g., reaching -15℃). Immediate emergency response and product isolation measures are implemented.
• Defrost Cancellation Function: An algorithm that avoids false detection of temporary temperature rises caused by automatic defrosting operations.
• Multi-channel Notification: Reliably notifies even at night or on holidays by combining email, automated voice calls (Auto-Call), SMS, and revolving lights/sirens.

4.3 BCP (Power Outage / Communication Failure) Response and Operational Management

Failure Scenario	Countermeasures of Equipment/System
Occurrence of a Power Outage	・Sensor main body is equipped with an internal battery (driven for several years). ・The master unit and communication equipment are connected to a UPS (Uninterruptible Power Supply) and an emergency generator.
Wi-Fi / Network Failure	Saves several days' worth of data locally in the internal memory of the sensor main body. Automatically resends and fills in missing data upon recovery.

• Regular Sensor Calibration: Performs calibration work using a standard thermometer every 1 to several years and keeps the certificate.
• Visualization of Temperature Deviation (Heat Map): Generates real-time temperature maps to identify and improve areas where air stagnates.

5. Floor Baseboard R Construction and Sanitary Drainage Structure

The joints between floors and walls (baseboards) and drainage equipment are the most important structural points to "physically prevent the creation of dirt and water puddles that become breeding grounds for bacteria."

5.1 Rising part of the floor and wall "R Construction (R Baseboard)"

To prevent incomplete cleaning at right-angle corners, the joint is rounded (R shape) and integrated with the floor coating.

Precautions for R Construction: To prevent cracks caused by carts and lifts colliding with the baseboard, high-strength resin mortar is adopted and stainless steel guard pipes are installed alongside.

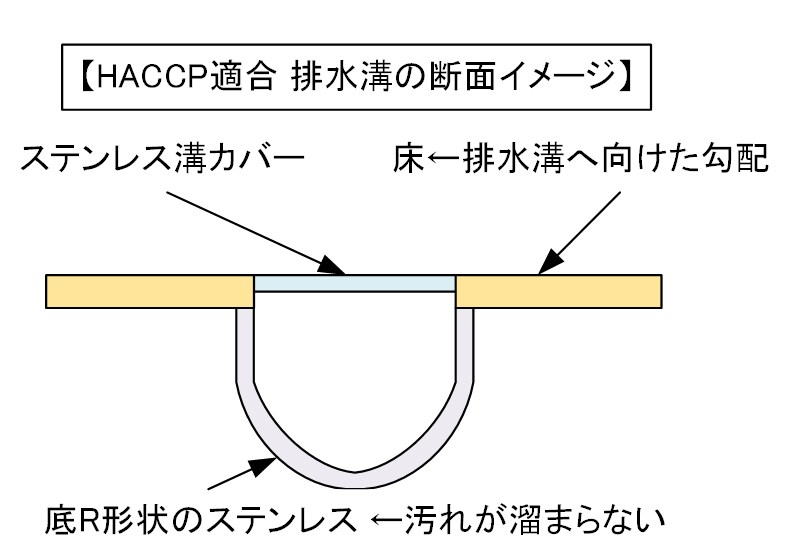

5.2 Structural Specifications for HACCP-Compliant Drainage Ditches

A stainless steel structure that allows water to flow smoothly without stagnation and is easy to clean is required.

Part	Construction Specifications / Structural Requirements	Purpose / Merit
Material	Stainless steel such as SUS304 (exposed concrete is not allowed)	Ensures chemical resistance and cleanability. Prevents bacteria from settling.
Ditch Bottom Shape	The bottom surface is a "Bottom R (U-shaped / V-shaped)"	Prevents dirt accumulation in corners, maintains flow velocity.
Drainage Gradient	The ditch itself is given a gradient of about 1/100 to 1/50 (1 to 2%)	Eliminates water puddles and drains completely to the trap.
Drain Cover / Trap	Insect-proof/odor-proof water seal trap + Basket (catch basket)	Prevents backflow of pests and bad odors, captures trash.

5.3 Floor Slopes and Pitfalls During Construction

• Water Use Areas: Secure a water flow gradient of about 1/50 to 1/100.
• Dry Areas: Install a minute gradient of about 1/100 to 1/200 or dedicated catch basins.
• Precautions (Construction Defects / Peeling): Verify dents and water puddles through a "sprinkling test" before handover. Also, to prevent peeling due to differences in expansion among dissimilar materials (metal panels, floor coatings, concrete), expansion-following joint seals are appropriately applied.

6. Basic Functions, Control, and Operation of HACCP-Compliant Facility Shutters

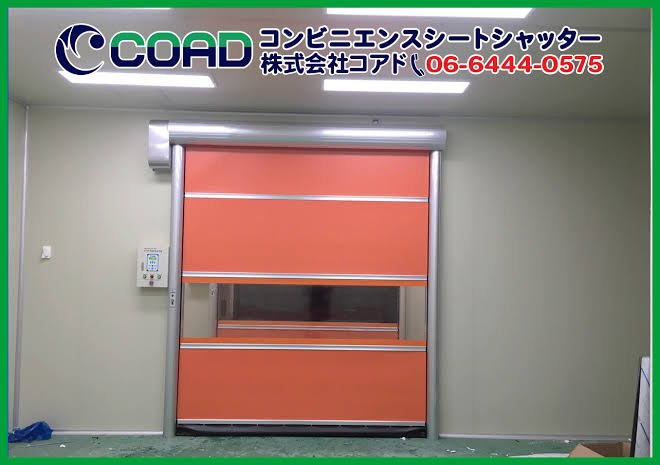

Shutters in HACCP-compliant food warehouses and factories are critical equipment for achieving "prevention of external pest and dust intrusion," "maintenance of temperature control," and "prevention of cross-contamination." Functional shutters with excellent airtightness and fast-acting capabilities are adopted instead of general heavy shutters.

6.1 Four Main Functions Required for HACCP-Compliant Shutters

• Minimizing Opening Time Through High-Speed Opening/Closing:
  • Function: Automatic high-speed opening and closing at 1.5m to 3.0m per second.
  • Effect: Shortens the opening time of the aperture to the absolute minimum, reducing the risk of outside air inflow and pest/dust intrusion.
• High Airtightness and Gap Countermeasures (Side Brush / Zipper Structure):
  • Function: Draft-prevention brushes, highly airtight zippers, and close-contact rubber lips are arranged in the rail sections and bottom gaps.
  • Effect: Prevents air leaks from positive pressure air conditioning and prevents fine insects from entering through gaps.
• Cleanability and Antibacterial/Anti-mold/Insect-repellent Materials:
  • Function: Adopts high-durability PVC (polyvinyl chloride) sheets and stainless steel frames that have been treated with antibacterial, anti-mold, and insect-repellent (UV block) processing for the sheet fabric.
  • Effect: Easy to wash with water and wipe down with disinfectants, preventing the shutter itself from becoming a source of bacteria.
• Prevention of Cross-Contamination via Non-Contact Sensor Linkage:
  • Function: Operated by floor-embedded loop sensors, motion/vehicle sensors, foot switches, etc., rather than manual switches.
  • Effect: Eliminates the need for workers or forklift drivers to touch switches directly with their hands, preventing contact infection.

6.2 Main Control and Operation Methods Used in HACCP Environments

System / Control	Overview and Hygienic Role
Interlock (Double Shutter) Control	A mechanism linking two shutters (or doors) so that "one shutter will not open until the other is completely closed." Turns the antechamber into an airlock, preventing outside air from directly entering the work area.
Air Curtain Linkage Control	Automatically injects a strong wind air curtain simultaneously with the shutter's ascending motion, creating a wall of air at the opening to double-block insect intrusion.
Emergency Backup (Safety Function)	Allows for easy opening and evacuation via manual operation (emergency release lever) or emergency power supply in the unlikely event of a power outage or emergency.

7. Features/Functions Comparison of Major Shutter Manufacturers and Selection Checklist

In the Japanese market for HACCP-compliant high-speed sheet shutters, three companies boast the top share: Komatsu Denki Sangyo, Bunka Shutter, and Sanwa Shutter Corporation. Because strengths and structural features differ by manufacturer, it is important to select one according to the priority issues of your facility (airtightness, self-restoration, durability, hygiene management).

7.1 Features and Strengths of the 3 Major Manufacturers

1. Komatsu Denki Sangyo (Product Name: MONBAN)

A pioneer of high-speed sheet shutters, holding an overwhelming track record in factories and logistics facilities.

• Main Features:
  • "Pipeless" and High Airtightness: Does not use metal pipes in the sheet, eliminating the risk of pipes coming out or getting damaged. Demonstrates high insect and dust proofing performance due to its highly airtight zipper structure (pipeless type).
  • Automatic Self-Restoration Function: Even if a forklift collides with the sheet and it derails from the rail, it has a structure that automatically returns into the rail during opening/closing movements (significantly reduces repair costs and downtime due to accidents).
  • Hygiene-Specialized Specifications: A full lineup of models dedicated to food factories where the drive unit and piping are all stainless steel.

2. Bunka Shutter (Product Name: Air Keeper Daihikai Kyo / Air Keeper Series)

Strengths lie in the comprehensive capabilities unique to a comprehensive building materials manufacturer, and in insect-repellent and energy-saving performance.

• Main Features:
  • Excellent Seal Structure: Achieves both high wind pressure resistance and draft prevention through a "zipper structure" and "special airtight structure" at both ends of the sheet.
  • Abundant Sheet Variations: A wealth of options suited to the environment, such as "Insect-repellent Orange/Yellow Sheets" that cut out wavelengths insects perceive as light, and "Thermal Insulation Sheets" for condensation and cold protection.
  • Smart Linkage: Excels in system linkage control with air curtains, air conditioning systems, and AGVs (Automated Guided Vehicles).

3. Sanwa Shutter Corporation (Product Name: Quick Saver / Quick Saver V)

Renowned for its robustness and the comprehensiveness of its construction and after-sales maintenance systems.

• Main Features:
  • High Durability and Stable Operation: Strong in high-wind environments (such as near outdoor berths) and possesses high rigidity that operates stably at high speeds even in large openings.
  • Self-Restoration Model (Quick Saver V): A safety design where the sheet detaches upon collision to absorb impact and automatically restores when ascending.
  • Nationwide Maintenance Network: The ability to respond to emergency repairs and inspections 24 hours a day, 365 days a year through service locations spread across Japan is a strength.

7.2 Selection Checklist for HACCP-Compliant Shutters

Select by comparing and considering the following points according to the facility and installation location (zone).

Evaluation Point	Check Content	Recommended Specifications / Selection Criteria
Installation Location (Indoor/Outdoor)	Is it affected by wind pressure?	・Near Outdoors: Frame with high wind pressure resistance, piped or high-strength zipper type. ・Indoor Antechamber: Top priority on high airtightness and high speed (2m/sec or more).
Damage Risk (Vehicle Frequency)	Possibility of collision by lifts, etc.	An "Automatic Self-Restoration Function" is mandatory in places where forklifts are heavily used.
Hygiene Level (Water Washing)	Will disinfection and water washing be performed?	Specify the frame and covers to be all-stainless steel (SUS304) specifications.
Insect-proofing / Light-shielding Measures	Flying insects and direct sunlight	Adjustment of insect-repellent treated sheets (orange/yellow) and the position/presence of transparent windows.
Interlocking with Other Equipment	Dual control and sensor linkage	Presence of a built-in interlock board, AGV communication compatibility, air curtain linkage.

8. Market Price of Shutters, Construction Costs, and Cost Reduction Methods

As a guideline, when introducing (or replacing) a single HACCP-compliant high-speed sheet shutter, the market price for a standard indoor size (approx. W2.5m x H2.5m to 3.0m) is roughly "Total 1.5 million yen to 3 million yen (excluding tax)" per unit.

The price range fluctuates significantly depending on the installation location (outdoor/indoor), hygiene specifications (stainless steel frame, etc.), and the presence of safety functions (self-restoration, etc.).

8.1 Cost Market Price by Specification (Per unit, excluding tax)

Specification Type	Features / Main Installation Locations	Main Unit Price Guideline	Installation/Construction Cost + Electrical Work Cost	Total Estimated Cost
Standard / Highly Airtight Model	For indoor partitions, insect-repellent sheet, with sensors	1 million to 1.6 million yen	300,000 to 500,000 yen	1.3 million to 2.1 million yen
High Hygiene / Stainless Steel Spec	For food processing plants and water-washing areas (All SUS frame, waterproof)	1.5 million to 2.3 million yen	350,000 to 550,000 yen	1.85 million to 2.85 million yen
Collision Self-Restoration / High Wind Resistance Model	Lines with frequent forklifts, adjacent to outdoor berths	1.8 million to 2.8 million yen	400,000 to 600,000 yen	2.2 million to 3.4 million yen
Freezing / Refrigeration Compatible (Frost-proof) Model	Thermal insulation sheet, internal heater built into the sheet	2.2 million to 3.5 million yen	450,000 to 700,000 yen	2.65 million to 4.2 million yen

8.2 Breakdown of Construction Costs and Added Factors

Construction costs include not just the simple installation of the main unit, but the following processes required for HACCP environments and safe operation.

• Basic Installation Construction Cost (approx. 200,000 - 300,000 yen): Assembly of the main frame, hanging the sheet, anchor fixing.
• Primary / Secondary Electrical Work Cost (approx. 100,000 - 200,000 yen): Bringing power to the control panel, interlock wiring, connection of various sensors (loop coil, motion, photoelectric, etc.).
• Removal and Disposal Cost of Existing Shutter (In case of existing replacement: approx. 100,000 - 150,000 yen): Dismantling and moving out the old shutter, industrial waste disposal costs.

8.3 Additional Costs due to Options and Linked Control

• Interlock Control (Double Shutter Linkage): +100,000 to 200,000 yen (Linked control panel and wiring cost)
• Air Curtain Linkage: +150,000 to 300,000 yen (Air curtain main unit + linkage relay)
• AGV / AMR (Autonomous Mobile Robot) Wireless Linkage: +100,000 to 250,000 yen (Communication interface board)

8.4 Points for Cost Reduction at Introduction

By placing bulk orders for multiple units, the travel expenses of the construction crew and the basic fees for electrical work can be shared, making it possible to reduce the unit construction price per unit by about 10 to 15%. Furthermore, by adding not only the performance of the insect-repellent sheet itself but also a "self-restoration function upon collision," the life cycle cost, including post-introduction repair and maintenance expenses, can be significantly reduced.
